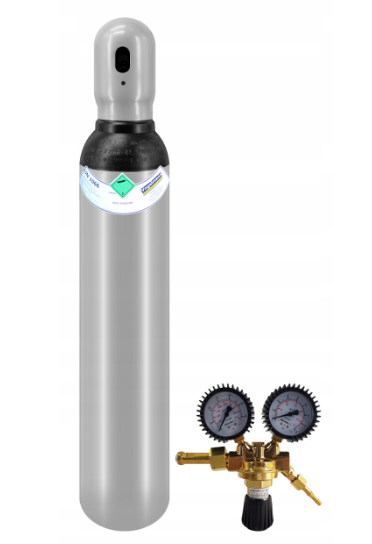

Full gas cylinder Nitrogen 8L 150bar with regulator Turbo

The nitrogen-filled cylinder is a component of shielding mixtures for welding and other industrial applications in metallurgy, food, glass, petrochemical and medicine.

8l cylinders have a protective cap

These cylinders are brand new.

8l cylinders have an operating pressure of 150 bar.

Cylinders and valves are made in accordance with EN1964: 1999 and have the π mark for compliance with ADR / RID requirements and the -40 ° C mark. They can be filled throughout the European Union.

Technical data of the gas cylinder:

• Valve: W 24.32 x 1/14 DIN 477
• Content: Nitrogen
• Capacity: 8L
• Working pressure: 150 bar
• Quantity of gas: ~ 1.5m3
• Height 82 cm
• Diameter about 14 cm
• Weight ~ 13 kg
• Powder coated according to the current PN-EN standards
• It can be used throughout the European Union without additional testing for 10 years
• Standard in PL, DE, AT, BE, CH, IL, HU, KR, CZ, SK

Single-stage cylinder regulator with variable outlet pressure regulation.

It allows the pressure of gases withdrawn from the cylinder to be lowered to the required outlet (working) pressure and ensures automatic maintenance of this pressure as constant as possible regardless of changes in inlet pressure.

The regulator is equipped with a safety valve, through which excess gas is released from the outlet pressure chamber to the outside when the discharge pressure rises above the allowable.

Technical data of the gas regulator:

• Nominal inlet pressure 200 bar
• Outlet pressure range 0.5 - 10 bar
• Nominal throughput 30 m3 / h
• Inlet thread - W24.32x1 / 14
• Outlet nut thread - G 1/4
• Outlet connection - (ø) 6.3mm
