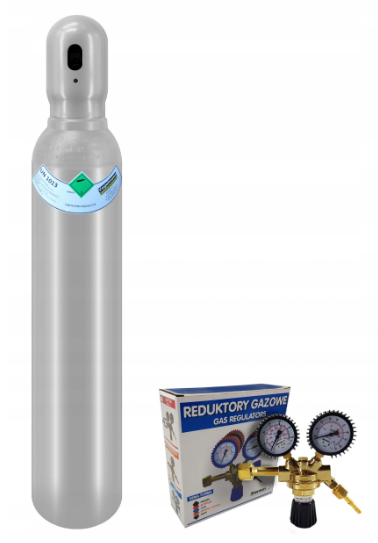

Full gas cylinder CO2 8L 5kg 150bar + regulator

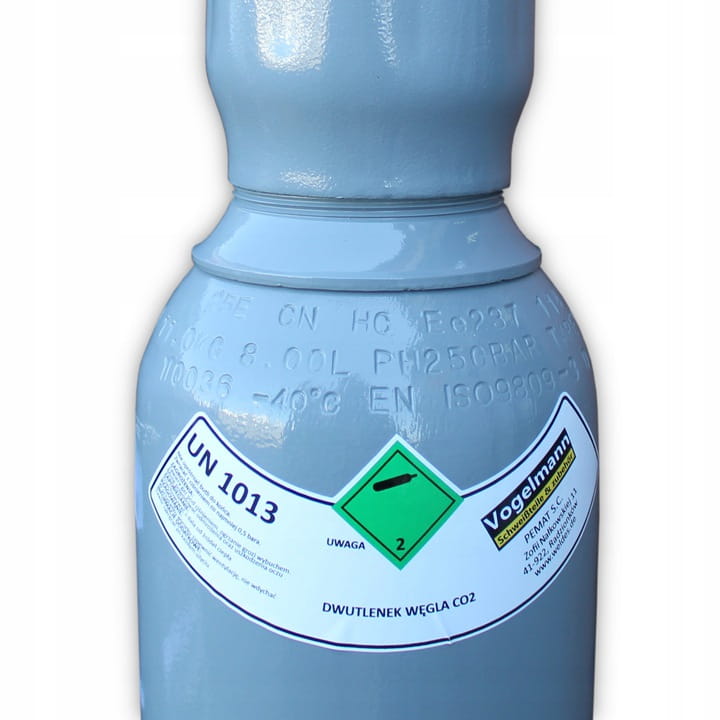

Brand new gas Cylinder full of Carbon Dioxide - CO2.

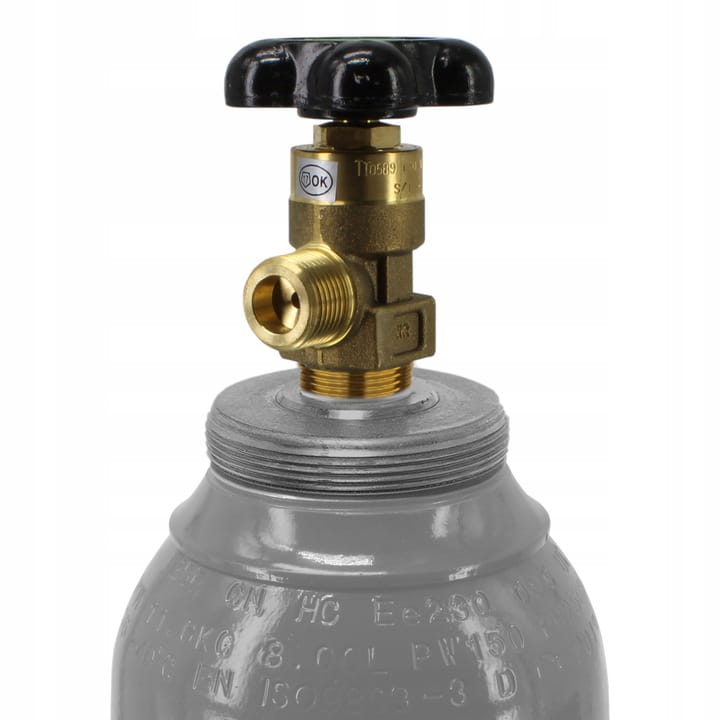

A protective cap protects the valve from damage during transport or storage.

The cylinder is new and has a working pressure of 150 bar. The cylinder and valve are manufactured according to EN 1964:1999 and have the conformity mark π (pi) with the requirements of ADR / RID.

ATTENTION!

Our cylinders have a threaded valve (W21.8x1 / 14) and it is technically possible to fill it.

However, filling problems can occur in certain countries such as France, Great Britain due to the type of valve used (G5/8") or Finland (W24,32x1/14)

However, filling is possible without problem in most countries.

TECHNICAL DATA:

• Valve: W 21.8 x 1/14 DIN 477
• Content: 100% Carbon Dioxide
• Capacity: 8L
• Working pressure: 150 bar
• Amount of gas: ~ 5kg
• Height 82 cm
• Diameter approx. 14 cm
• Weight ~ 16 kg
• Powder coated according to the current PN-EN standards
• It can be used throughout the European Union without additional testing for 10 years

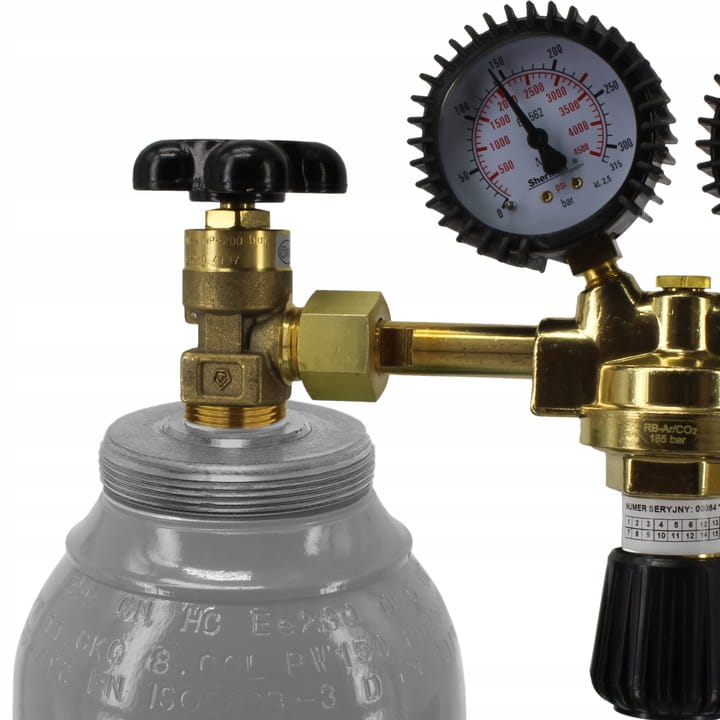

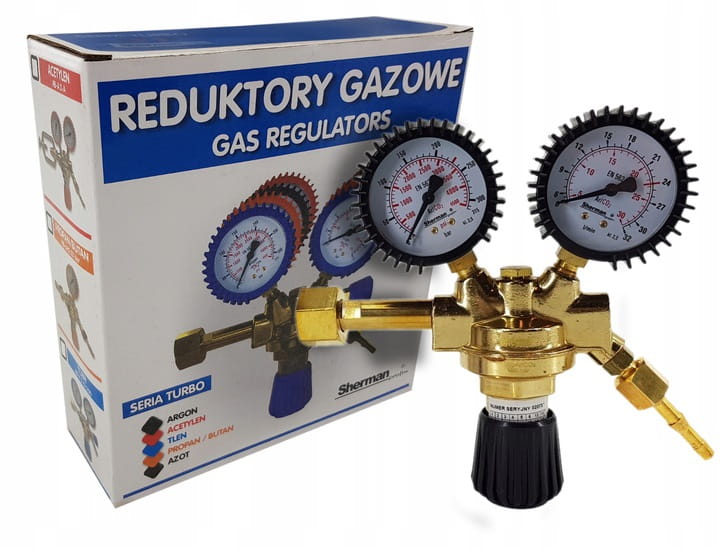

Ar / CO2 gas reducer

Single-stage cylinder regulator with variable outlet pressure regulation. It allows the pressure of gases withdrawn from the cylinder to be lowered to the required outlet (working) pressure and ensures automatic maintenance of this pressure as constant as possible regardless of changes in inlet pressure. The regulator is equipped with a safety valve, through which excess gas is released from the outlet pressure chamber to the outside when the discharge pressure rises above the allowable.

REDUCER TECHNICAL DATA:

• Rated inlet pressure [bar]: 185
• Outlet pressure range [bar]: 0.5 - 10
• Rated flow [m3 / h]: 15
• Inlet thread: W21.8x1 / 14
• Outlet nut thread: G 1/4
• Outlet connection (ø) [mm] 6.3
