⚡ ESAB Savage A41 Air Welding Helmet 0700504102

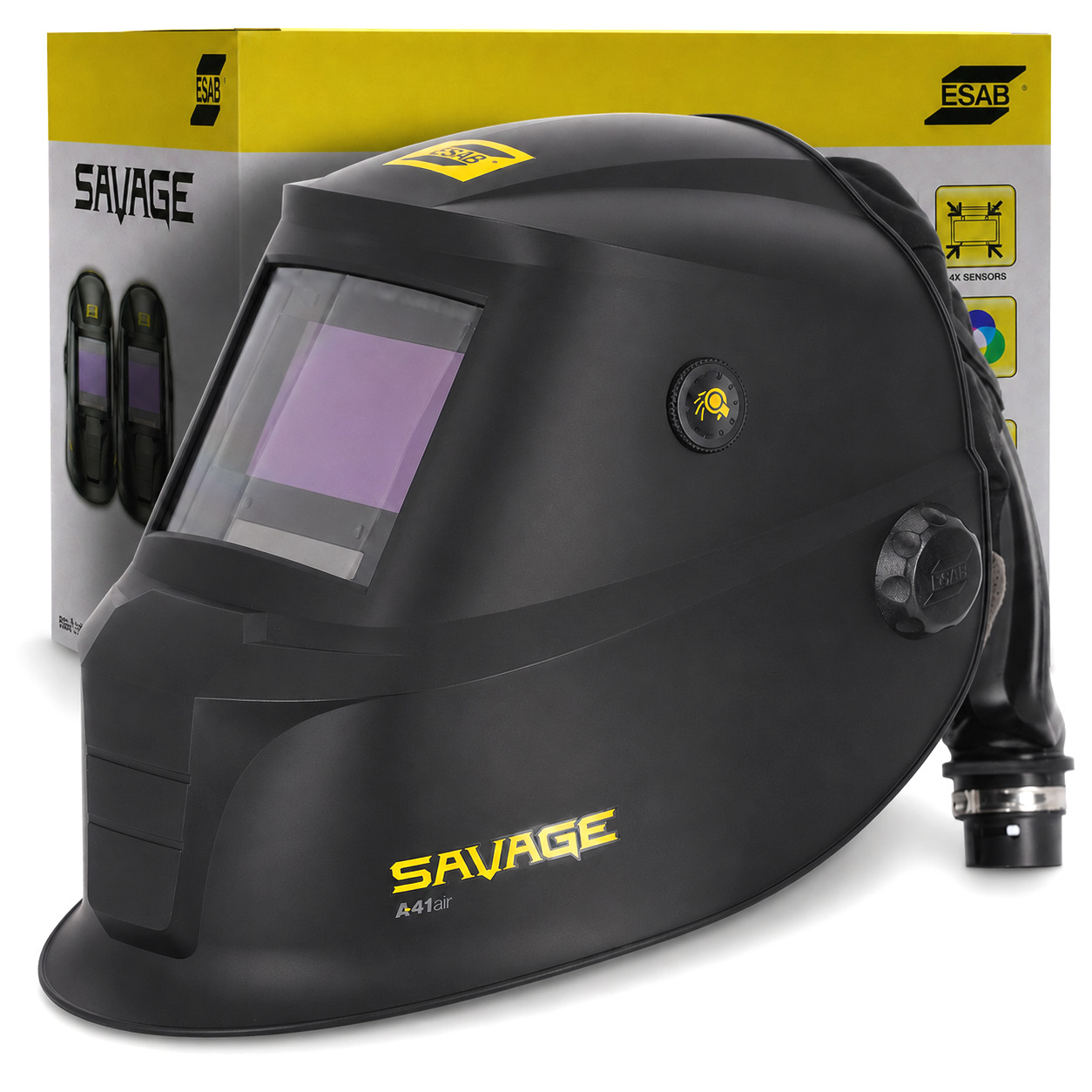

ESAB Savage A41 Air is an automatic welding helmet designed for use with the PAPR powered-air system. It features a digitally controlled ADF auto-darkening filter, True Color technology, four arc sensors and an external button for quickly switching to grinding mode.

The Air model retains the compact and durable design of the Savage series, while also featuring an air supply system that delivers air inside the helmet. The 100 × 50 mm viewing area and digital adjustment of shade, sensitivity and delay allow the filter to be adapted to various welding processes.

Information: this offer is for the ESAB Savage A41 Air welding helmet only, catalogue no. 0700504102. The ESAB EPR-X1.1 PAPR filtration system, catalogue no. 0700500920, is not included and is available separately.

✅ Key features

• automatic 100 × 50 mm ADF welding filter,
• welding shade range DIN 8–13,
• light state / grinding mode DIN 4,
• digital adjustment of filter parameters,
• 6 sensitivity adjustment levels and 6 delay levels,
• 4 arc sensors,
• True Color technology,
• external grinding-mode button,
• replaceable CR2450 lithium battery supported by a solar cell,
• designed for use with the ESAB EPR-X1.1 PAPR system,
• helmet weight of only 700 g.

✅ Digital ADF filter with True Color technology

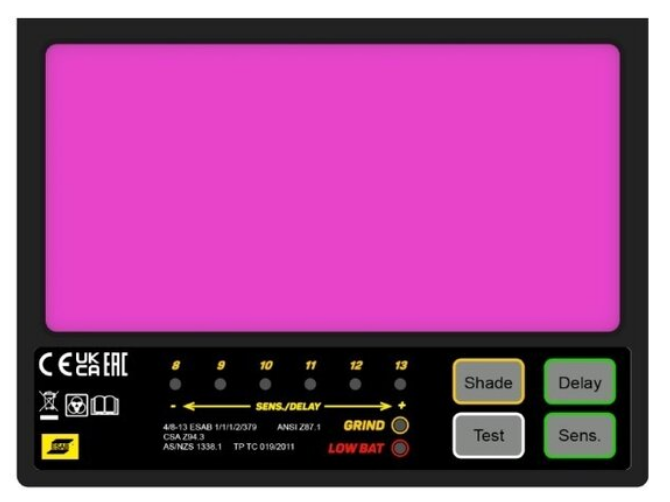

The Savage A41 Air features an automatic welding filter with a 100 × 50 mm viewing area. Four optical sensors detect the arc and quickly switch the filter from the light state to the selected shade level.

The digital control panel enables shade selection within the DIN 8–13 range, as well as sensitivity and delay adjustment. Each of these two parameters has 6 adjustment levels, allowing the filter operation to be adapted, among other things, to MIG/MAG, MMA and TIG welding.

True Color technology provides more natural colour reproduction and a clearer view of the welded component compared with traditional filters with a strong green tint.

✅ Quick grinding mode

The external Grind button switches the filter to grinding mode without removing the helmet. In this setting, the ADF is locked at DIN 4, allowing you to move efficiently from welding to weld processing and finishing.

✅ Designed for the PAPR system

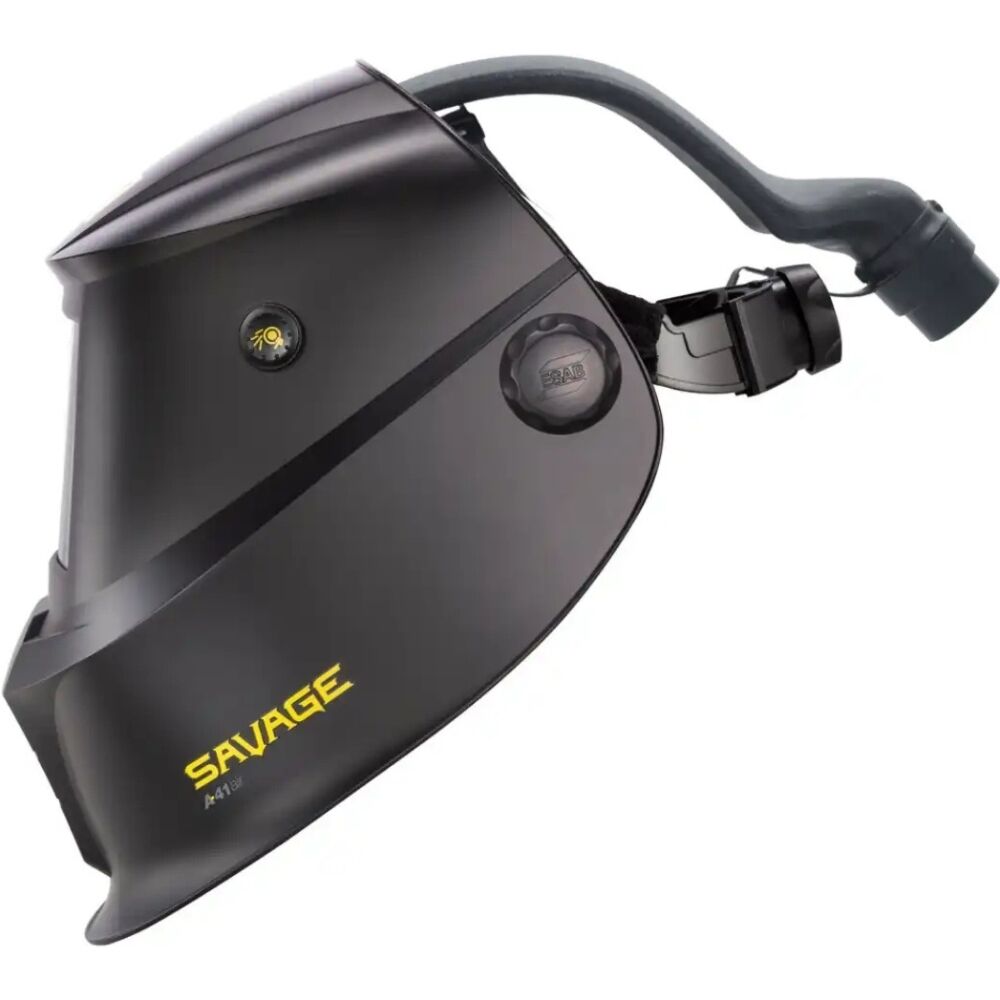

The Savage A41 Air version features an air supply system and is prepared for use with the ESAB EPR-X1.1 PAPR powered-air filtration system. Air is directed from the upper part of the headgear into the helmet, providing an even flow in the breathing zone.

When connected to a compatible PAPR system, the manufacturer specifies the level of protection against solid particles as TH3. The EPR-X1.1 system also allows the use of an optional A1B1E1 gas filter.

Compatible system: ESAB EPR-X1.1 PAPR – catalogue no. 0700500920, available separately.

✅ Replaceable battery and solar assistance

The ADF filter is powered by a replaceable CR2450 lithium battery, additionally supported by a solar cell. This solution allows the power source to be easily replaced when depleted.

✅ Applications

• MIG/MAG (GMAW) welding,
• TIG (GTAW) welding,
• coated-electrode MMA/SMAW welding,
• plasma arc PAW welding,
• plasma cutting,
• oxy-fuel cutting,
• grinding and finishing work.

✅ Technical data

✅ Standards and certification

• CE: EN ISO 16321 W4/8-13 V2,
• CSA: Z94.3.

✅ Offer contents

1 × ESAB Savage A41 Air welding helmet – black, catalogue no. 0700504102.

The ESAB EPR-X1.1 PAPR 0700500920 system is not part of this offer and is available separately.
