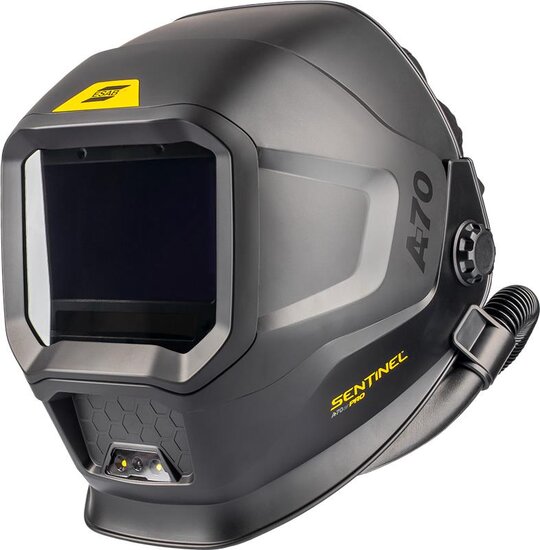

⚡ ESAB Sentinel A70 Air PRO Welding Helmet 0700900701

ESAB Sentinel A70 Air PRO is a professional automatic welding helmet designed for welding, grinding and metalworking tasks. It features a large ADF, True Color technology, a flip-up welding module, digital controls, Bluetooth and integrated LED work lighting.

The Air PRO version is additionally designed for use with the ESAB EPR-X1.1 PAPR powered air-purifying respirator system.

Information: this offer concerns the ESAB Sentinel A70 Air PRO 0700900701 welding helmet only. The ESAB EPR-X1.1 PAPR, catalogue no. 0700500920 filtration system is not included and is available separately.

✅ Key features

• large 123 × 75 mm ADF,
• shade range DIN 3/5–13,
• OpTCS™ True Color technology,
• 4 arc sensors,
• optical class 1/1/1/1,
• flip-up ADF module for quickly switching from welding to grinding,
• large clear grinding visor measuring 150 × 194 mm,
• colour TFT display and digital controls,
• Bluetooth connectivity and support for the ESAB Helmet Connect app,
• integrated 50 lm LED work light,
• HALO™ headgear,
• designed for use with the ESAB EPR-X1.1 PAPR system.

✅ ADF with True Color technology

The automatic welding filter, with a viewing area of 123 × 75 mm, provides a wide view of the work area and weld pool. The DIN 3/5–13 shade range and precise adjustment allow the filter’s operation to be adapted to various welding methods and parameters.

OpTCS™ True Color technology provides more natural colour reproduction than traditional welding filters, making it easier to assess the weld and maintain orientation in the work area.

✅ Weld and grind without removing the helmet

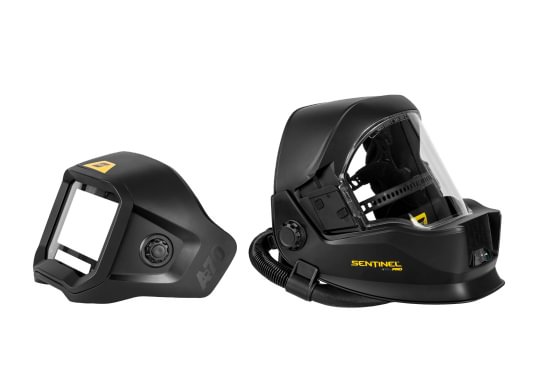

The Flip-Up design allows the ADF to be raised for quickly switching to grinding or weld inspection. A clear face shield measuring 150 × 194 mm is located beneath the welding module.

The ADF module can also be completely removed during longer grinding and finishing tasks.

✅ Digital controls and Bluetooth

The helmet features a colour TFT display and an external digital control dial, allowing convenient adjustment of the filter parameters even while wearing welding gloves.

Bluetooth connectivity enables connection to the ESAB Helmet Connect app, which allows settings to be managed, work profiles to be saved and arc-on time to be monitored.

✅ LED lighting and HALO™ headgear

The integrated 50 lm LED work light improves visibility when preparing components, positioning the torch and inspecting the completed weld.

The adjustable HALO™ headgear helps distribute the helmet’s weight evenly and provides a stable fit during extended work.

✅ PAPR system connection

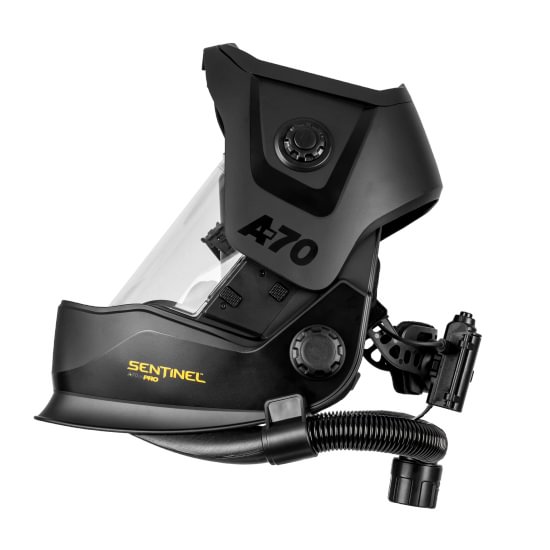

The Sentinel A70 Air PRO has air channels designed for use with the ESAB EPR-X1.1 PAPR system. Once a compatible powered air-purifying unit is connected, filtered air is supplied directly into the helmet.

Compatible system: ESAB EPR-X1.1 PAPR, catalogue no. 0700500920 – available separately.

✅ Applications

• MIG/MAG welding,
• TIG welding,
• MMA welding with coated electrodes,
• plasma welding,
• grinding and mechanical processing,
• material preparation before welding,
• weld inspection and finishing.

✅ ESAB Sentinel A70 PRO and A70 Air PRO – video presentation

Manufacturer’s material presenting the key features of the Sentinel A70 PRO and Sentinel A70 Air PRO helmets.

✅ Technical data

✅ Standards and certification

• ISO 16321,
• CE,
• AS/NZS 1338.1,
• CSA Z94.3,
• ANSI Z87.1.

✅ Offer contents

1 × ESAB Sentinel A70 Air PRO welding helmet – catalogue no. 0700900701.

The ESAB EPR-X1.1 PAPR 0700500920 system is not included and can be purchased separately.
