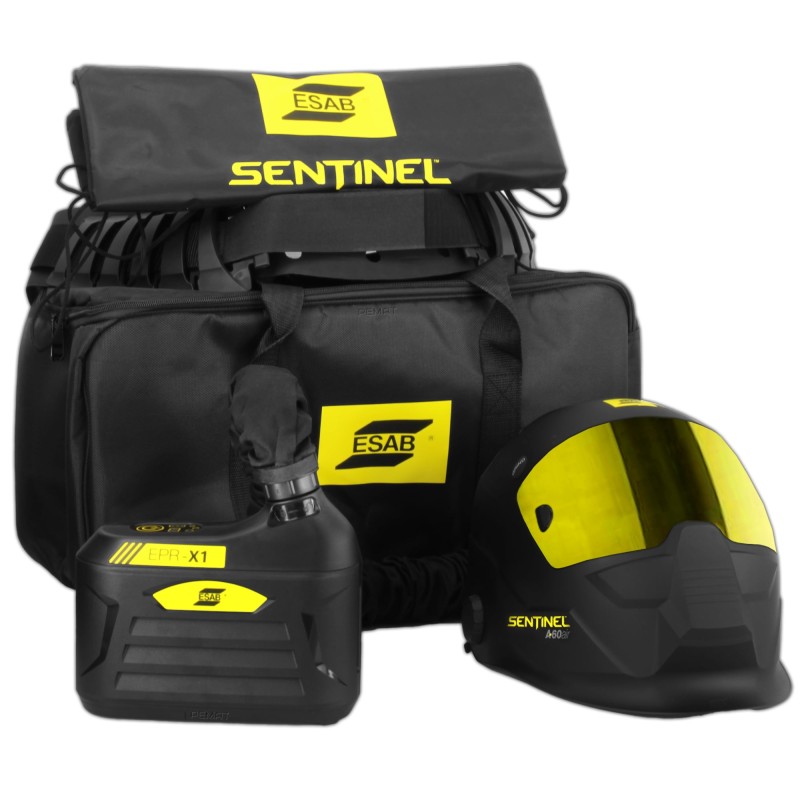

ESAB Sentinel A60 AIR Welding Helmet + EPR-X1.1 PAPR System + Carrying Bag

ESAB SENTINEL™ A60 AIR + EPR-X1.1 PAPR System + Carry Bag

Brand: ESAB | Optical class: 1/1/1/1 | Viewing area: 118 x 71 mm | Number of sensors: 4 | Shade range: DIN 5 - 13

✅ STANDARD EQUIPMENT:

• ESAB Welding Helmet Sentinel A60
• ESAB Protective Cover
• Spare outer lenses
• Original packaging
• ESAB PAPR Unit EPR-X1.1 – 0700500920
• Smart charger
• P3 filter + pre-filter
• Waist belt and shoulder harness
• Airflow tester
• Flexible FR fabric hose
• Transport bag

The Sentinel A60 AIR welding helmet with air supply takes welding to the next level, offering a panoramic view and excellent clarity with 1/1/1/1 optical class according to EN standards.

The redesigned ADF filter with OpTCS™ technology offers True Color and 0.5 DIN shade step adjustment – for greater control and less eye strain.

The signature Halo™ headgear, grind mode, and ergonomic design make it one of ESAB’s top-performing helmets.

✅ TECHNICAL DATA:

• Viewing area: 118 x 71 mm
• Shade range: DIN 5–13 (adjustable by 0.5 DIN)
• Passive shade: DIN 3
• Power supply: 2x CR2450 batteries
• Arc sensors: 4
• Switching speed: 1/25,000 s
• Delay (lightening time): 0.1 – 0.9 s (digital)
• Optical class: 1/1/1/1
• Certifications: EN175, EN379, EN166, ANSI Z87.1, CSA Z94.3, AS/NZS 1338.1, ISO 16321 +TIG
• Weight: 644 g

✅ FEATURES:

• OpTCS™ True Color technology
• Memory for up to 9 settings
• Arc sensors: 4
• Fast switching time: 0.08 ms
• Grind mode, shade lock, LED indicators

✅ FUNCTIONS:

POWER: Replaceable CR2450 battery

DELAY: Adjustable delay time after welding ends

SENSITIVITY: Adjustable sensitivity – tailored to lighting conditions

SHADE: Controlled from internal panel

✅ EPR-X1.1 PAPR RESPIRATORY PROTECTION SYSTEM

EPR-X1.1 is a compact air purifying system providing reliable protection against welding-related dust and fumes. Airflow remains constant regardless of battery status.

The LED panel allows monitoring of battery and filter status. Durable housing is ideal for industrial use.

✅ EPR-X1.1 SYSTEM FEATURES:

• Stepless airflow control: 170–220 l/min
• Li-Ion battery: up to 10 h runtime
• Filters: P3 + pre-filter
• Charger: smart with international plug
• Alarm: audible and visual (filter or battery)
• Control: buttons and LED indicators

✅ CARRY BAG

Transport bag for ESAB air-fed systems, made of durable material resistant to abrasion and industrial wear.

• Protects PAPR unit from scratches
• Room for helmet, blower unit, and accessories
• Improves safety and convenience
