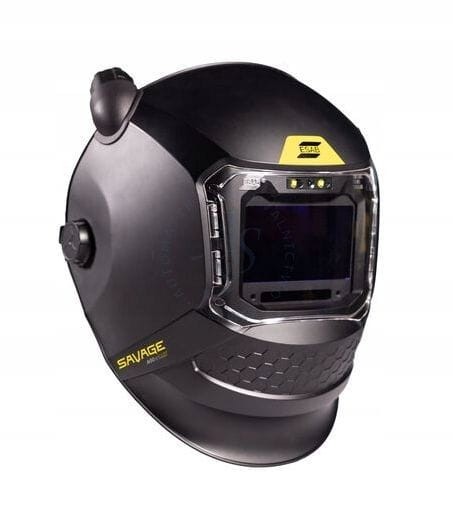

ESAB SAVAGE A50 AIR LUX FAN HELMET

Brand: ESAB | Optical class: 1/1/1/1 | Number of sensors: 4 | Field of view: 100x60mm | Arc sensors: 4

STANDARD EQUIPMENT:

• Complete welding helmet with integrated LED work light and harness
• 2x outer protective glass (clear)
• Case
• ADF filter battery CR2450
• Screwdriver for battery replacement ADF
• AA Alkaline Battery for LED Work Light
• Safety Instructions

The Savage A50 LUX utilizes proven helmet technology to provide true OpTCS color reproduction with excellent clarity in accordance with optical class 1/1/1/1 EN.

The ADF has a simple, intuitive control panel that provides control over the most important functions related to all types of welding: a wide selection of shade levels, 5-step delay adjustment and sensitivity.

Integrated vent can be easily adjusted to improve airflow across the front of the visor. Furthermore, reliable PAPR operation is achieved thanks to TH3 protection with ESAB's EPR-X1.1 or EPR-X1.

An additional asset that increases the versatility of the Savage A50 LUX helmet is the dual 50 lumen LED work light built behind the molded front protective lens.

The work light is powered by a separate AA battery, which has a long life thanks to the integrated arc sensor, which allows the lamp to be switched off when an arc or intense light is detected.

The Halo headgear used in the Savage A50 LUX helmet is the same solution from 5-point adjustment, which is offered in the Sentinel A60.

FEATURES:

• LED work light with dedicated arc sensor and power
• Easy-access LED work light power button and separate external grinding mode button
• ADF field of view: 100 x 60 mm (3.94 x 2.36 in) with internally adjustable buttons
• Shade range: DIN 3/5–13
• ESAB OpTCS™ True-Color Filter Lens by ESAB
• Arc Sensors: 4
• TH3 filtration efficiency in EPR-X1 or EPR-X1.1 PAPR systems
• Fast switching time of 0.07 milliseconds
• Replaceable CR2450 battery
• LEDs for low battery and grinding mode

TECHNICAL DATA:

• Field of view: 100 x 60 mm
• Shade level: 5-13 DIN
• Passive shading level: 3 DIN
• Sensors: 4
• Class optical: 1/1/1/1
• Switching time: 0.04ms light to dark
• Delay (dark to light): 0.1 ~ 0.9s, digital push button control
• Power supply: Solar cell, replaceable battery; 1 x CR2450 lithium battery
• Dimensions: 112 × 105 × 9 mm
• Weight: 600g
