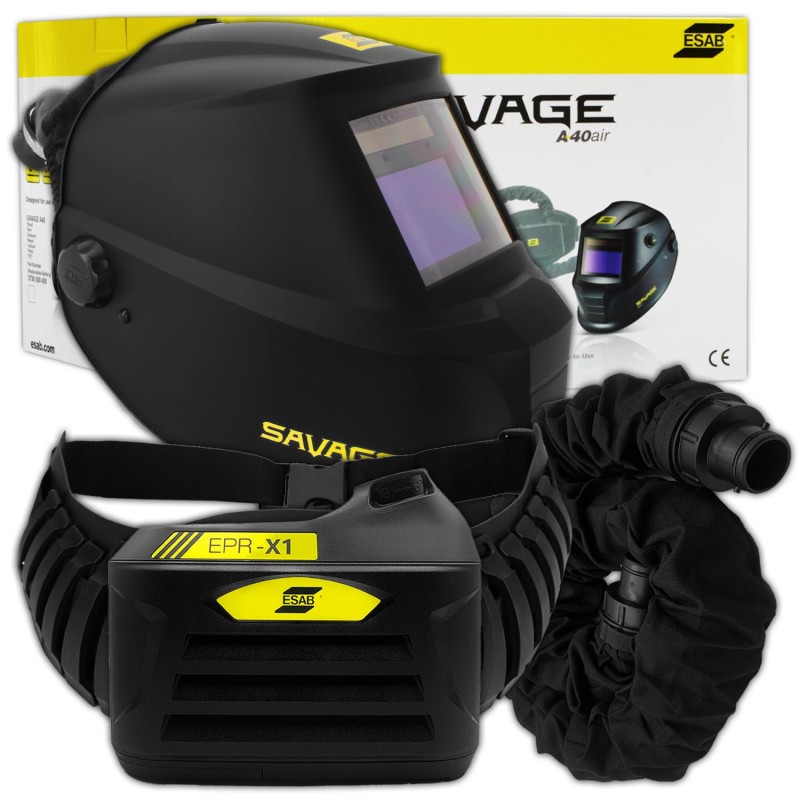

ESAB Savage A40 AIR Black Welding Helmet + EPR-X1.1 PAPR Air-Fed System

ESAB SAVAGE A40 AIR – SET #1

Brand: ESAB | Optical class: 1/1/1/2 | Number of sensors: 4 | Viewing area: 100 x 50 mm | Outer shell size (PCV): 93 x 115 mm

✅ Standard equipment:

• ESAB Savage A40 air-fed welding helmet – 0700500400
• ESAB EPR-X1.1 PAPR unit – 0700500920

✅ Enter Savage Mode

Design with uncompromising detail inspired by the Sentinel A50 bestseller. Brighter view, better color accuracy, and air supply make the Savage A40 Air a powerful tool for any welder.

✅ Breathe Freely

The PAPR system allows adjustable airflow (170–220 l/min) through a replaceable P3 filter. A quiet fan (70 dB) and Li-ion battery deliver up to 8 hours of work. The system alerts the user when the filter needs replacing via audible signal.

✅ Outstanding Optical Features

100 x 50 mm viewing area and 1/1/1/2 class ADF filter with True Color technology provide better spatial awareness and weld pool visibility.

✅ Advanced Technology

Sensitivity and delay settings are adjustable from inside. Four optical sensors enhance auto-darkening performance, even in difficult positions.

✅ Savage Look

External grind mode button and DIN 9–13 adjustment dial allow comfortable operation – even with heavy gloves.

✅ Maximum Comfort

Full adjustability and optical sensors allow the helmet to adapt to the welding position and working conditions.

✅ Applications:

• Oxy-acetylene cutting
• Plasma cutting
• Grinding
• Welding – GMAW (MIG/MAG)
• Welding – GTAW (TIG)
• Welding – PAW (plasma arc welding)
• Welding – SMAW/MMA (stick/covered electrode)

✅ Technical data:

• Viewing area: 100 x 50 mm (3.93 x 1.96 in.)
• ADF shade range: DIN 9–13 (automatic)
• Power source: solar cell + CR2450 battery (replaceable)
• Sensors: 4
• Switching time (dark to light): 0.1–0.9 s
• ADF response time at 23°C: 0.07 ms
• Optical class: 1/1/1/2
• Standards: CE EN379, EN175, EN12941, ANSI Z87.1, CSA Z94.3, AS/NZS 1338.1
• Weight: 700 g

✅ EPR-X1.1 Respiratory Protection System

The EPR-X1.1 system, combined with an ESAB welding helmet, ensures effective protection against harmful dust and gases produced during welding, grinding, and gouging.

The unit features a compact and durable housing for industrial conditions. The operator can monitor battery status, airflow, and filtration level via an intuitive LED panel.

✅ EPR-X1.1 System Features:

• Stepless airflow control: 170–220 l/min
• Li-Ion battery – up to 10 h of operation
• P3 filter + pre-filter
• Smart charger with international plug
• Audio and visual alarms (clogged filter, low battery)
• Simple operation – all functions accessible via control panel
