ESAB Rebel EMP 235ic Welder

Availability: Last items in stock
Delivery: The price does not include any possible payment costs check the delivery methods
Price: €2,925.00 2925.00
quantity pcs.

product unavailable

add to wish list

Description

ESAB REBEL ™ EMP 235ic - 0700300989

Brand: ESAB | Welding methods: MIG / MAG, TIG, MMA | Power supply: 230V | Welding current: 230A | Efficiency: 25% |

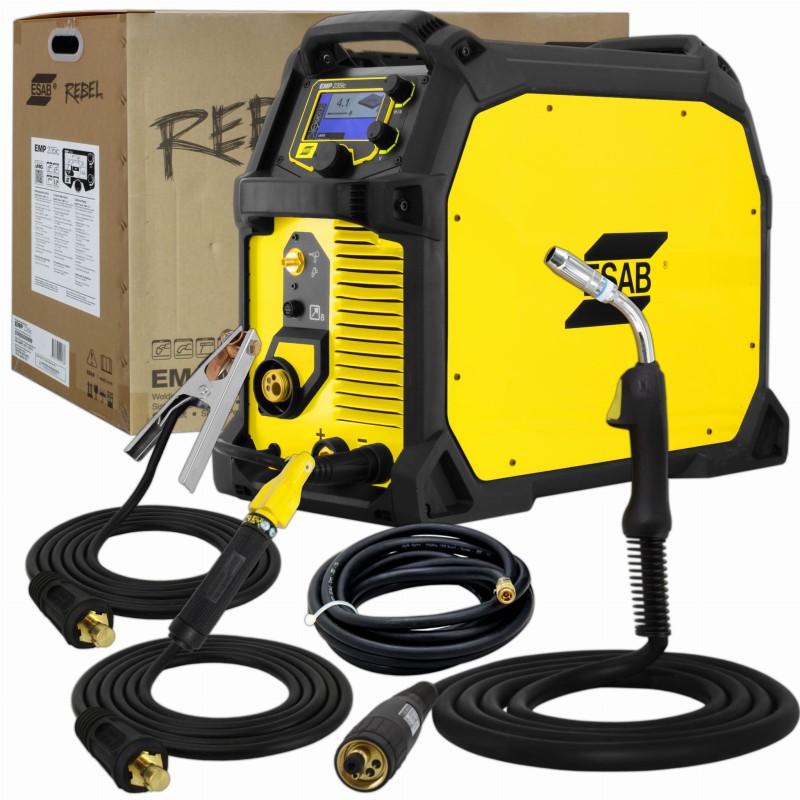

STANDARD EQUIPMENT:

  • Rebel EMP 235ic device
  • Welding torch MXL 270 3 m
  • 3 m power cord with 230 V 16 A plug
  • 3 m mass cable
  • 3 m electrode cable
  • 4.5 m gas hose with quick coupling
  • Contact tips and feed rolls

ESAB REBEL EMP 235ic

The Rebel 215 has a big brother. The Rebel EMP 235ic is the most mobile welding machine in its class, offering the power and performance to meet even the greatest challenges.

The ability to handle multiple processes in combination with the low weight of the device, as well as its compact size make the Rebel 235i truly versatile.

Intuitive and simple setting of welding parameters makes the device suitable for practically every user, while maintaining the highest quality of welding works performed in the workshop and in the field.

HIGH PERFORMANCE

There are supposed to be a lot of multi-function machines.

In fact, they are all slightly more complex MIG / MAG devices. The Rebel is a real device that supports many methods - MIG / MAG, FCAW, MMA coated electrode, and even hard-to-weld 6010 cellulose electrodes or Lift TIG - Rebel will handle it as if it was created only for a given welding method.

UNRIVALED DURABILITY

Whether in the factory, in the field or in the workshop, you need a device that is easy to move and can withstand multiple impacts. This is what Rebel is like. Thanks to its durable housing with installed rollers, multiple handles, uniform steel construction and IP23S protection class, you can take it with you wherever you go.

TECHNOLOGY ON THE NEXT LEVEL

The unique sMIG (smartMIG) technology in Rebel devices is sure to impress anyone, whether it has been welding for two or 20 years.

Novices can use the Basic Mode for easy set-up. For veterans, built-in arc control constantly monitors the weld to ensure a perfect result every time.

INTELLIGENT TECHNOLOGY

The technology we call sMIG (smartMIG) produces less spatter, minimizes welding defects and adapts to the welder's technique to ensure a smooth, stable arc and weld shape with consistent quality.

Just set the wire diameter and sheet thickness and you are ready to weld. Whatever your skill level is, setup is quick and easy in both Basic Mode for beginners and Advanced Mode for experienced welders.

TECHNICAL DATA

  • Input voltage: Single phase 110V - 230V
  • Rated welding current: 230 A, duty cycle 25%
  • Maximum welding current: 250 A.
  • Spool size: 200-300 mm
  • Weight: 28.6 kg

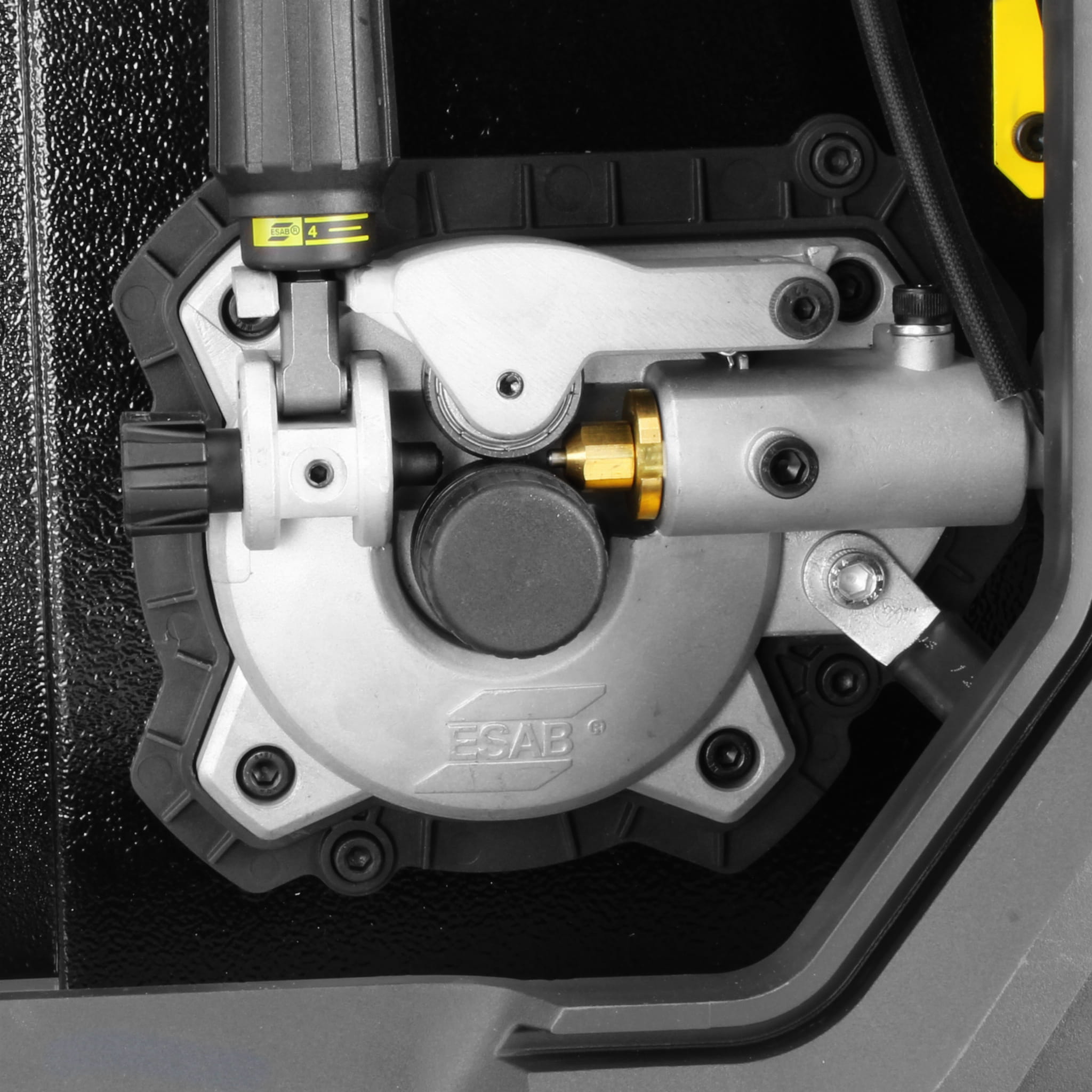

  • Drive system: 2-roller, wire speed 17.8 m / min
  • Setting range (MIG / MAG): 15 A / 14.8 V - 235 A / 26.0 V
  • Setting range (TIG): 5 A / 10.2 V - 240 A / 19.6 V
  • Setting range (MMA): 16 A / 20.6 V - 210 A / 28.4 V
  • 25% duty cycle: 230 A / 25.5V
  • 40% duty cycle: 195 A / 23.8V
  • 60% duty cycle: 170 A / 22.5V
  • Supply voltage range: 120-230 V AC (single-phase)
  • Wire feed speed range: 2.0-17.8 m / min
  • Weight: 28.6 kg
  • Power source dimensions, L x W x H: 686 x 292 x 495 mm
  • Electric plug: 230 V, 16 A Schuko plug

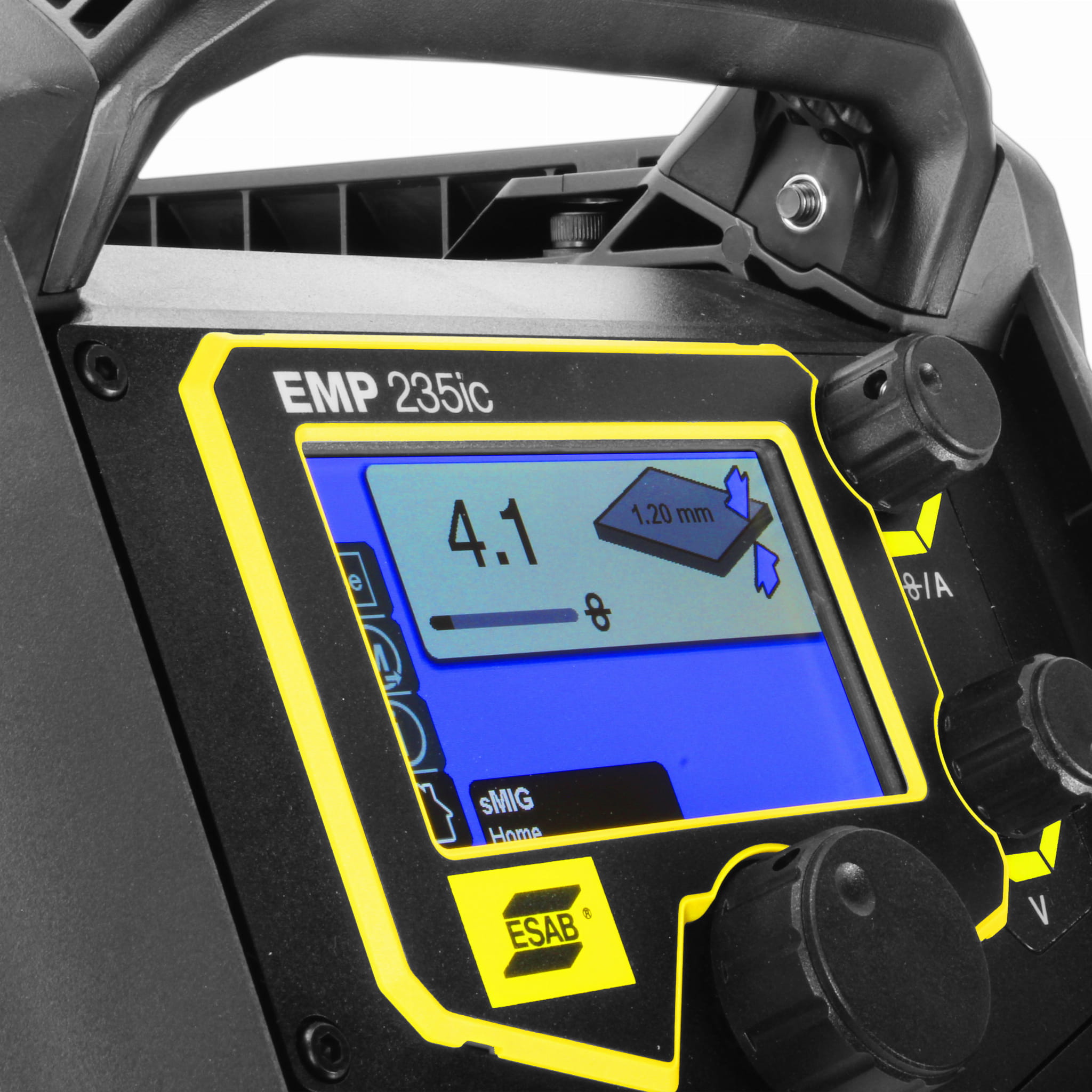

TFT DISPLAY, USER INTERFACE

All variants of ESAB's Multifunction Devices (EMP) are equipped with a 4.3-inch TFT color display.

The panel can display information in 22 different languages, making it easier to select processes and set parameters, regardless of the user's nationality. The panel also includes:

  • lists of spare and consumable parts and a view of the wire feed mechanism and MIG / MAG gun,
  • welding parameters guidelines for all processes,
  • maintenance recommendations.

DOUBLE SHIELDING GAS SOLENOID VALVES

Dual gas inlet valves allow the connection of two different gases which can be connected simultaneously (or individually).

In the case of MIG / MAG welding, you can connect CO2 or Ar / CO2 mixture, while for TIG DC welding we use pure Ar and thus we can use welding torches with a button in the handle TIG torches.

FUNCTION OF REDUCING ACCESS SPEED DURING ARC IGNITION

When this function is activated, the wire feed speed is reduced when welding starts and at the same time the shielding gas valve is unlocked. When the wire comes into contact with the workpiece, the wire feed speed is increased to the preset value. This ensures a spatter-free stable arc ignition.

FUNCTIONS OF THE REBEL EMP 235ic DEVICE

  • MIG / MAG method and functions
  • MMA method and functions
  • The method and functions of LiftTIG
  • Smart function sMIG ("Smart MIG")
  • Support multi-language TFT display

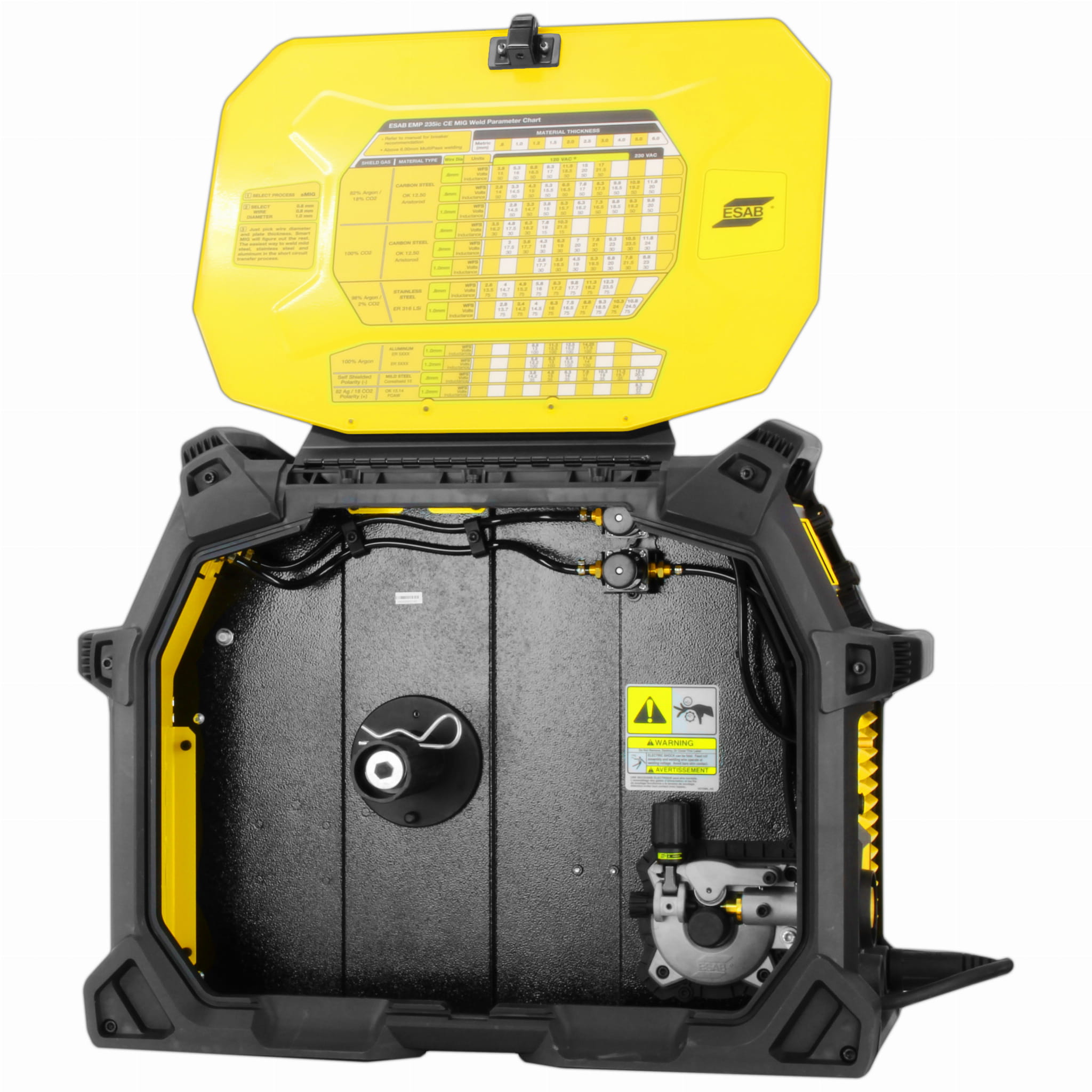

  • Spool type with a diameter of 200 mm
  • Spool type with a diameter of 300 mm
  • 2-roller mechanism
  • Individual memory (programs)
  • Arc dynamics control (inductance)
  • 2/4 measure function
  • Welding voltage correction
  • SCT function, droplet detachment at the end of welding and thus problem-free re-ignition of the arc
  • Adjustment of the burnback time of the electrode
  • Pre-setting the gas flow
  • Spot welding (MIG / MAG)
  • Adjusting the Hot Start function in the MMA method
  • Control of the welding current rising and falling in the TIG method
  • Two shielding gas valves
  • Remote control of welding parameters

UNMATCHED MOBILITY

Weighing just 28.6 kg, the Rebel EMP 235ic is the lightest in its class. Thanks to four practical handles and the ability to disconnect the power source from the trolley, the user is able to tackle any task anywhere with a dual supply voltage of 90 V to 270 V available.

POWERFUL PRODUCTIVITY

The Rebel EMP 235ic comes with a starter kit and is suitable for any application requiring welding wires with a diameter of 0.6 to 1.0 mm.

A machine with a maximum output parameters of 250 A / 30 V and a rated current of 230 A in a 25% duty cycle, connected to a network protected by a 16 A fuse, is able to cope with the most demanding tasks, where only a single-phase current source is available.

UNBEATABLE VERSATILITY

The Rebel EMP 235ic is three machines in one MIG / MAG, MMA. Rebel EMP 235ic is applicable for a wide range of thicknesses of the welded material: when using a short-circuit arc, using wire with a diameter of 1.0 mm, when using cored and solid wires for other methods - using a diameter of up to 1.2 mm.

The Rebel EMP 235ic can be used for MMA welding up to 4.0 mm in diameter and TIG electrode welding up to 3.2 mm in diameter.
