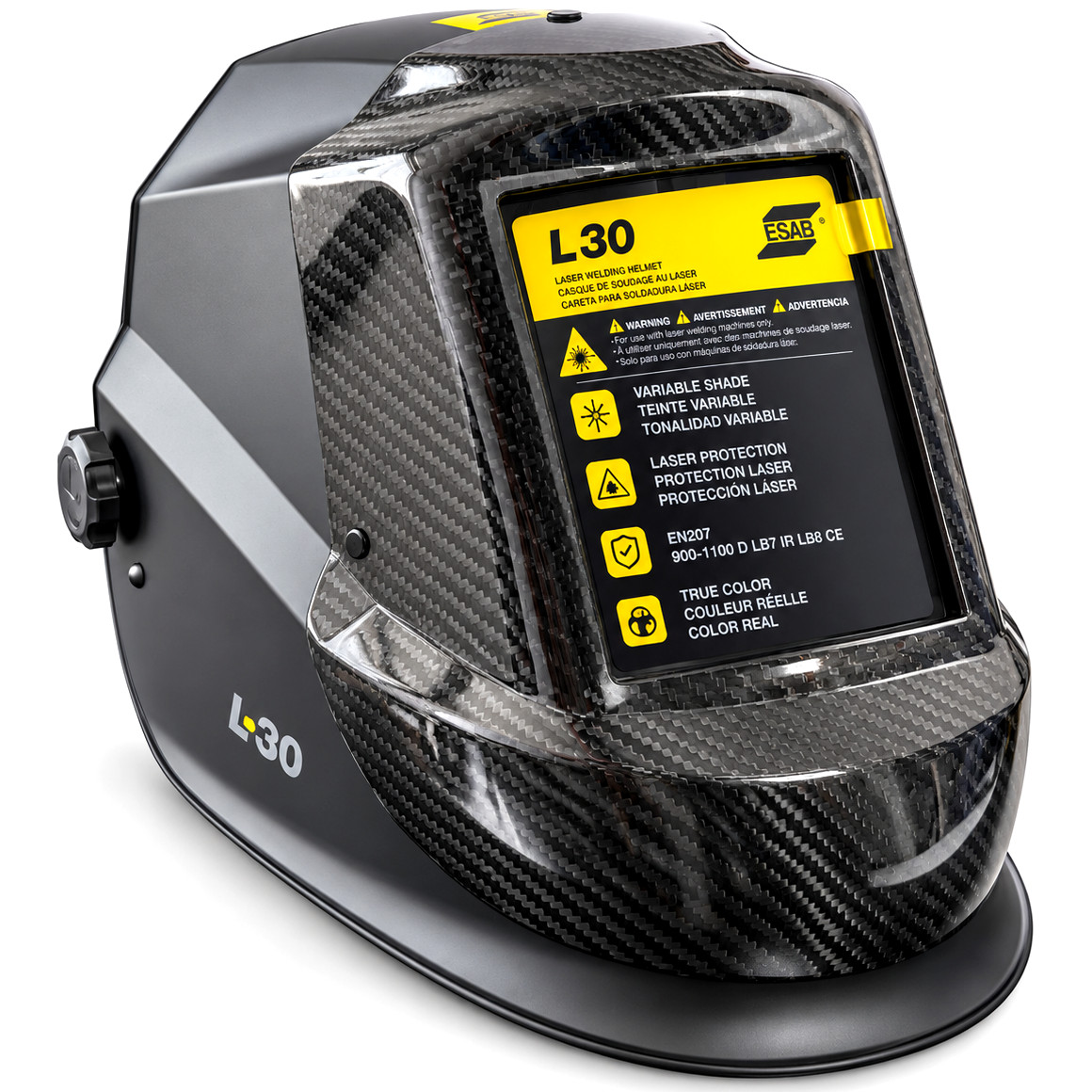

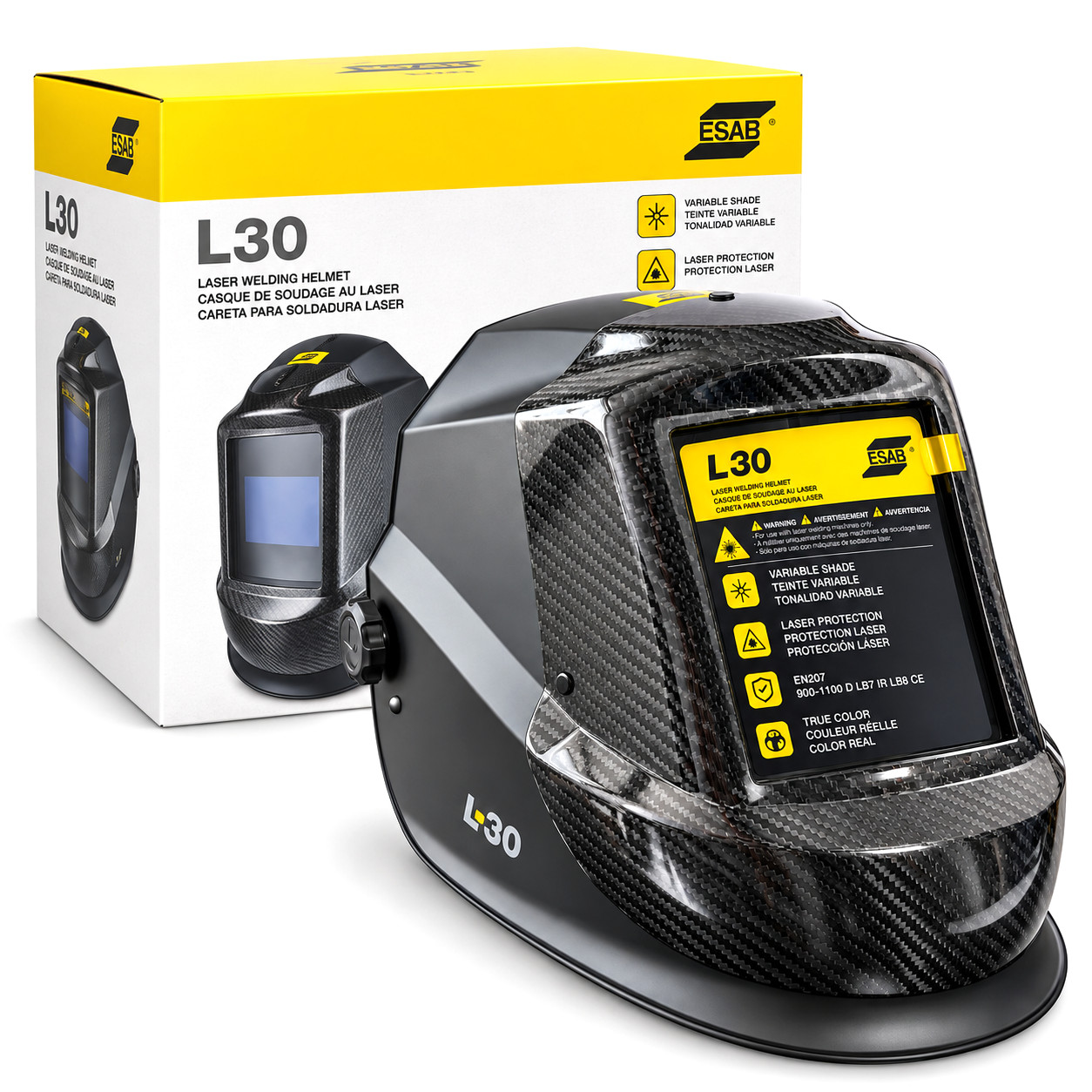

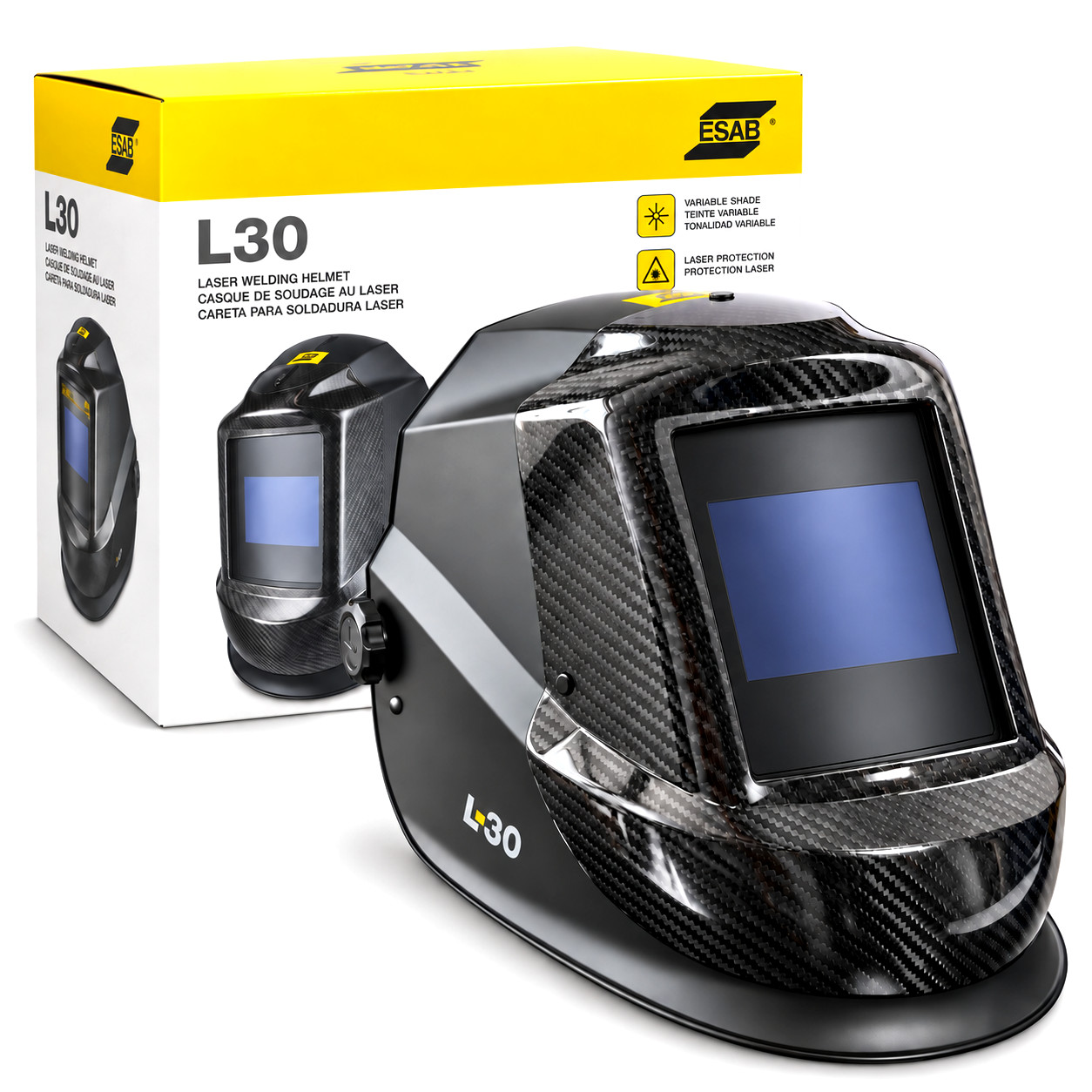

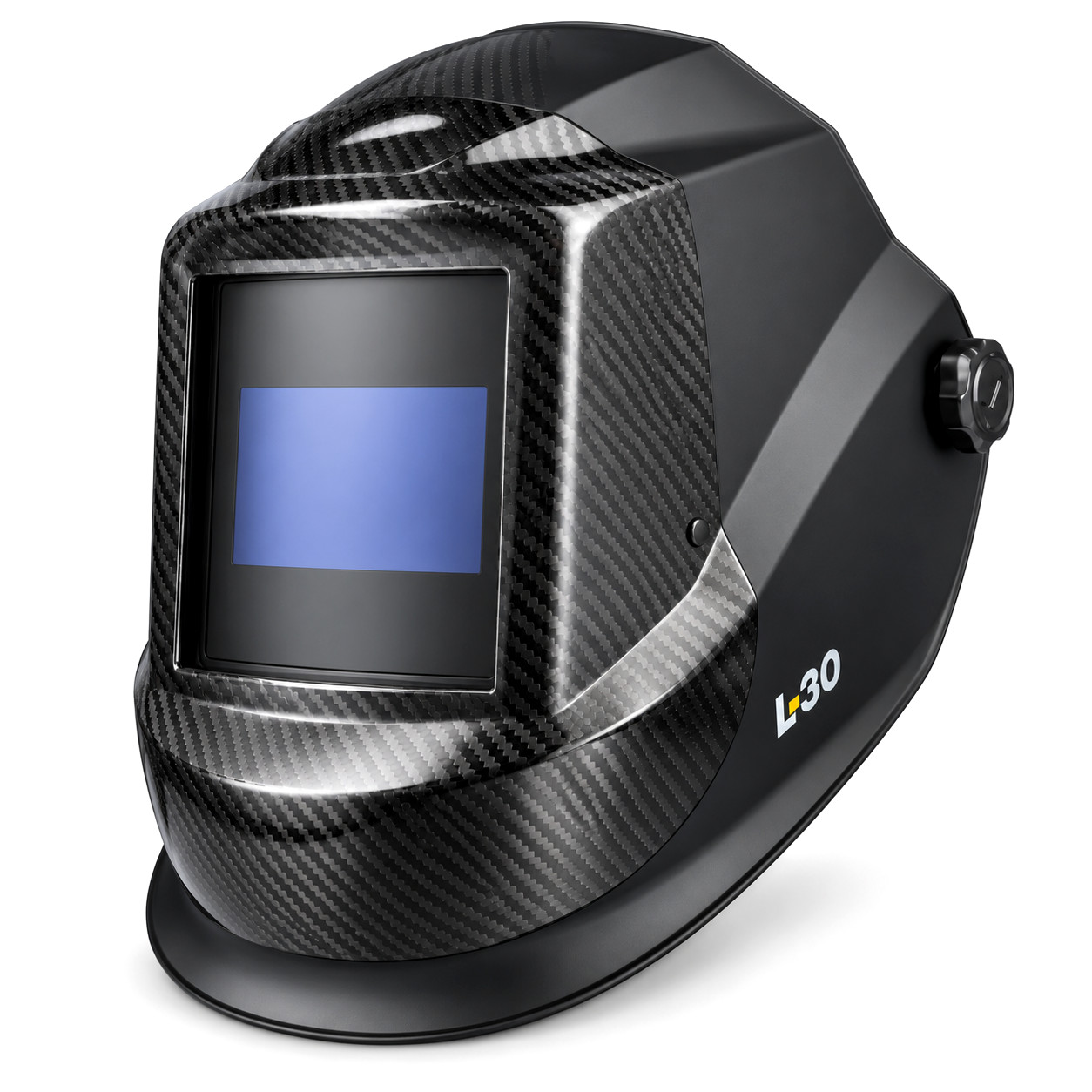

⚡ ESAB L-30 Laser Welding Helmet

The ESAB L-30 is a portable welding helmet designed for manual laser welding. The optical filter and shell provide protection against high-intensity laser radiation. Its construction is designed for use with radiation in the 900–1100 nm wavelength range.

The welding helmet offers five shade levels: DIN 2,5, 3, 3,5, 4 and 5. The 100 × 60 mm viewing area enables precise observation of the work area, while the digital interface makes it easier to adjust the shade level.

✅ Key features

• designed for manual laser welding,
• protection against high-intensity laser radiation,
• optical filter and shell certified to EN 207,
• five adjustable shade levels from DIN 2,5 to DIN 5,
• 100 × 60 mm viewing area,
• digital interface for shade level adjustment,
• front shell made of carbon fibre,
• filter holder made of carbon fibre,
• multi-point headgear adjustment,
• designed for the 900–1100 nm wavelength range,
• solar cell-assisted power supply.

✅ Construction and working comfort

The lightweight carbon-fibre front shell combines protection with a reduced construction weight. Multi-point headgear adjustment allows the welding helmet to be fitted to the user, improving stability and comfort during extended periods of work.

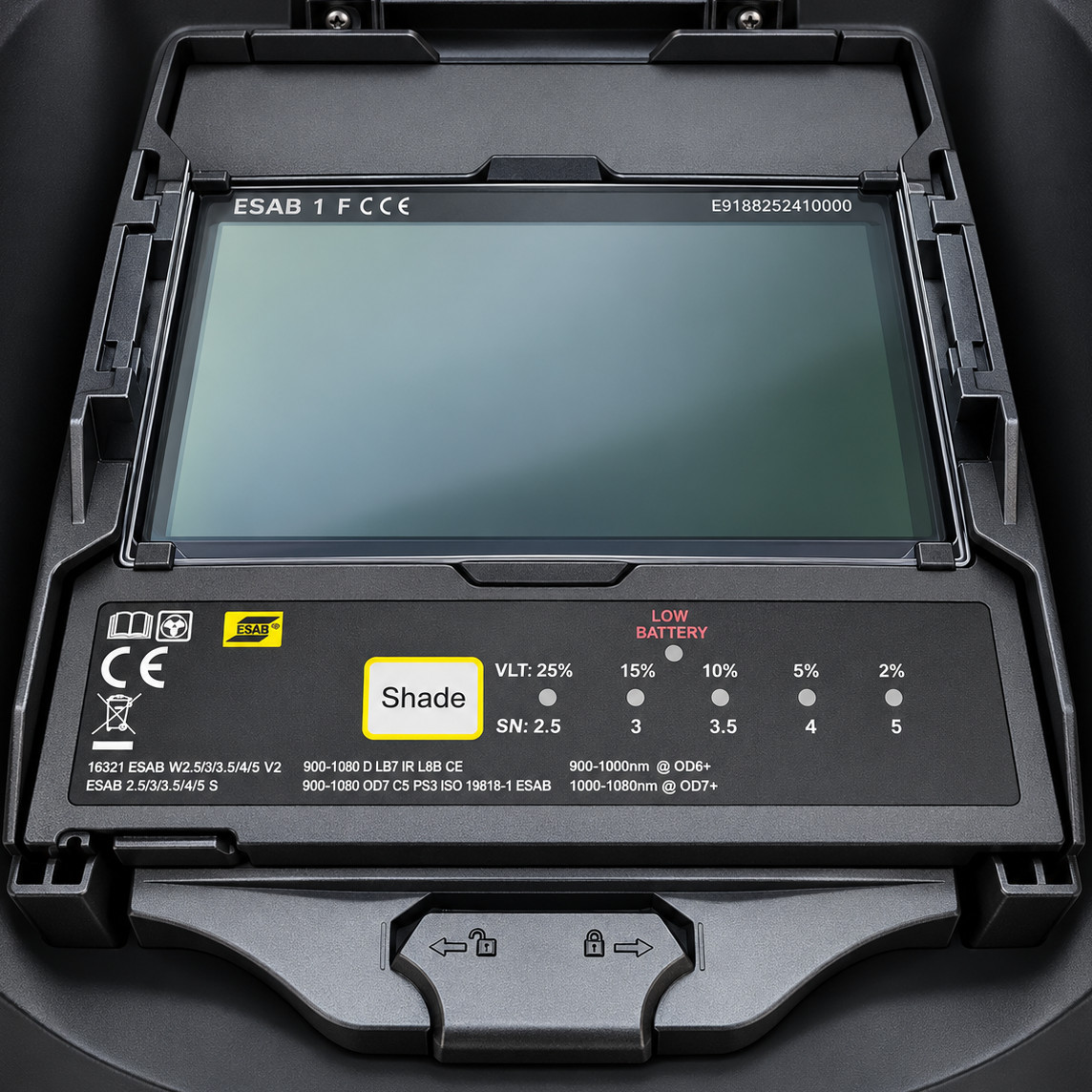

The filter has five shade levels with defined visible light transmittance (VLT). The user can select the shade level to suit the task and working conditions.

✅ Application

The ESAB L-30 welding helmet is designed to protect the user during manual laser welding. The wavelength range and protection level must always be matched to the parameters of the laser source in use and the requirements of the specific workstation.

✅ Technical data

✅ Certification and markings
