ARMACK Brass Brazing Filler Metal 60/40 L-CuZn40Si LM60K Bare 2.5x500mm
Regular price:
product unavailable
add to wish list
Description

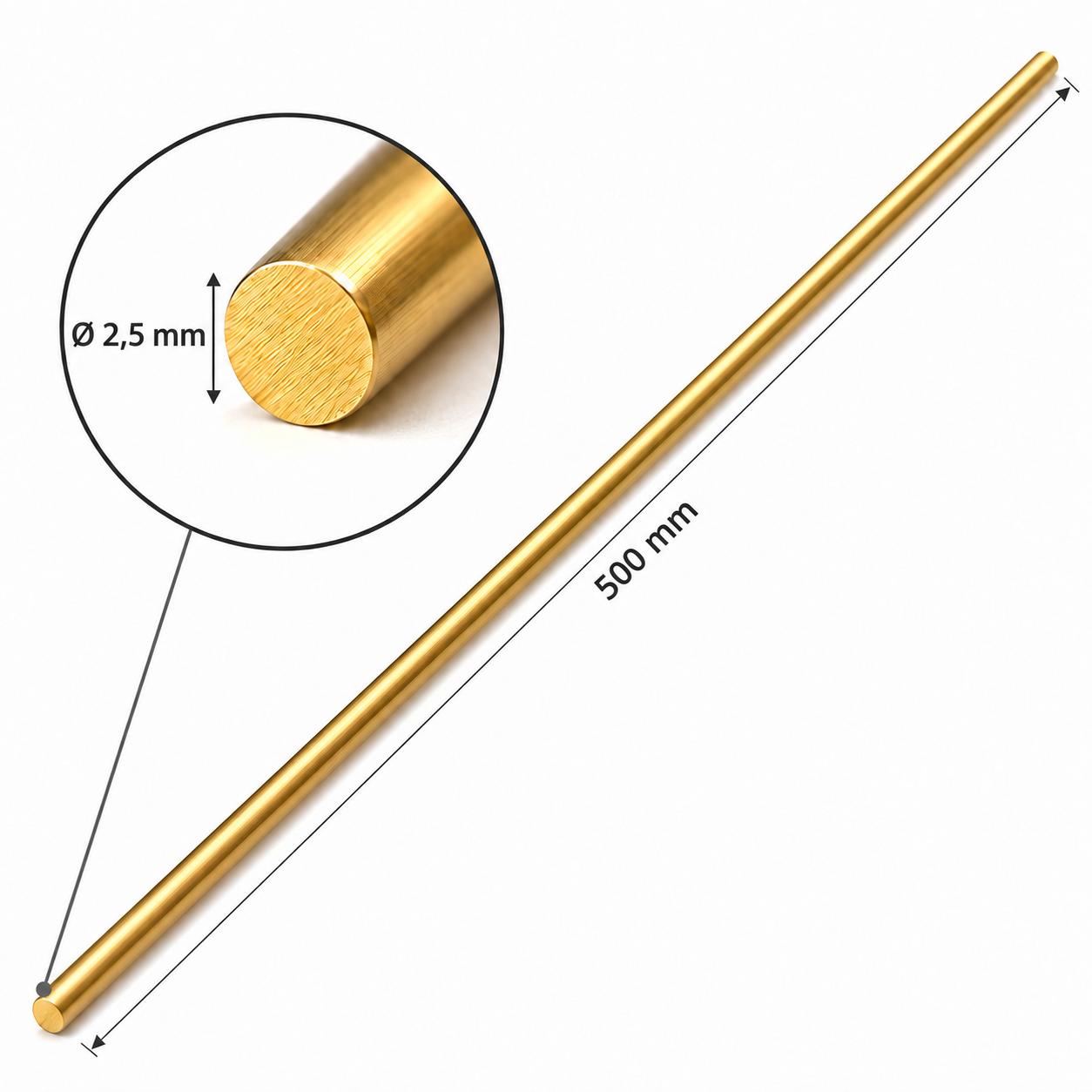

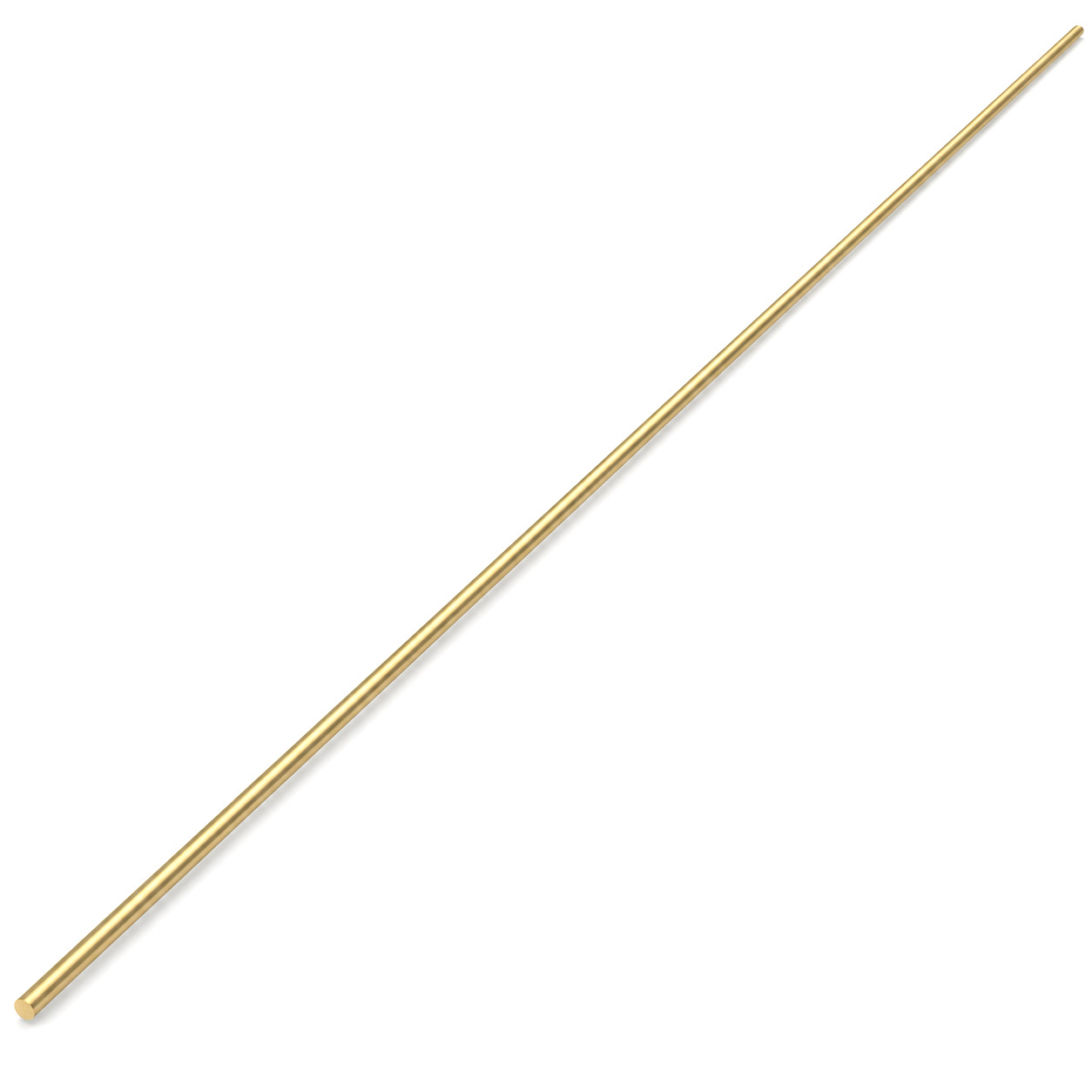

⚡ ARMACK Brass Brazing Filler Metal 60/40 L-CuZn40Si LM60K Bare 2.5 × 500 mm
ARMACK L-CuZn40Si LM60K is a brass brazing filler metal in the form of a bare rod, intended for joining steel, malleable cast iron and copper alloys. The material complies with the designation ISO 17672 Cu 470a (L-CuZn40Si).
The silicon content reduces zinc evaporation during brazing. The melting temperature range is 890–900°C, and the brazing working temperature is 900°C.
✅ Key features
- brass brazing filler metal in the form of a bare rod,
- material designation: CuZn40Si – LM60K,
- designation according to ISO 17672: Cu 470a (L-CuZn40Si),
- silicon content that reduces zinc evaporation,
- joint resistance to operating temperatures up to 300°C,
- rod diameter 2.5 mm,
- rod length 500 mm.
✅ Applications
The brazing filler metal is intended for brazing:
- steel,
- malleable cast iron,
- copper alloys,
- bicycle and motorcycle frames,
- various types of structural tubing.
For pipework, the product is approved by DVGW in accordance with Code of Practice GW2 exclusively for cold-water systems made from galvanised steel pipes.
✅ Technical data
| Manufacturer | ARMACK |
| Product type | Brass brazing filler metal |
| Form | Bare brazing filler metal |
| Material designation | CuZn40Si – LM60K |
| Designation according to ISO 17672 | Cu 470a (L-CuZn40Si) |
| Diameter | 2.5 mm |
| Length | 500 mm |
| Melting temperature range | 890–900°C |
| Brazing working temperature | 900°C |
| Joint resistance to operating temperature | Up to 300°C |
| Quantity | 1 pc. |
| Bulk packaging | 48 pcs. |
