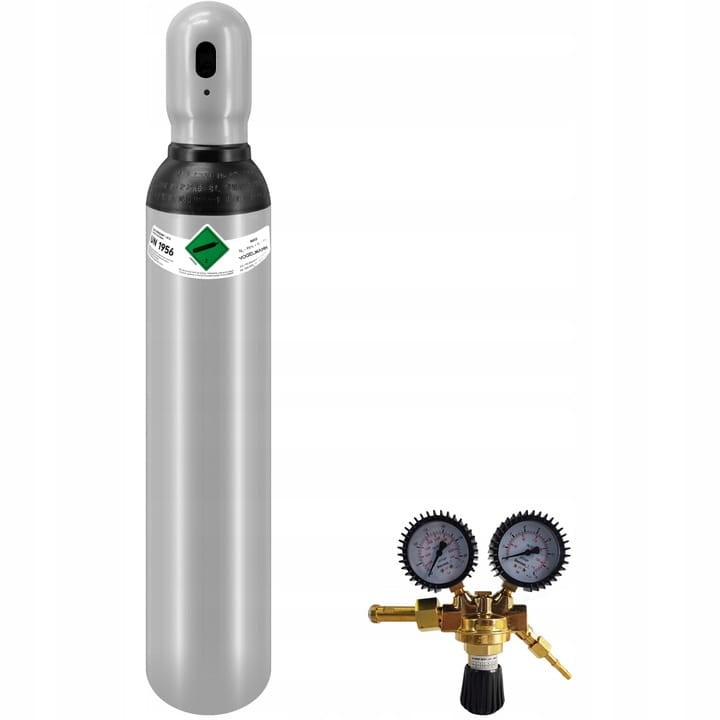

5% Hydrogen / 95% Nitrogen - Gas Cylinder + Gas reducer Turbo

SET: GAS CYLINDER HYDROGEN NH5 + GAS REDUCER NITROGEN TURBO

GAS CYLINDER HYDROGEN NH

| Brand: Vogelmann | Gas: Hydrogen | Working pressure: 150 bar | Capacity: 8 liters |

Hydrogen cylinder filled with a mixture of 95% nitrogen and 5% hydrogen. It is designed to check the tightness of air conditioning.

8l cylinders have a protective cap

These cylinders are brand new.

Cylinders and valves are made in accordance with the EN1964: 1999 standard and have the π mark of compliance with ADR / RID requirements and the -40 ° C mark. They can be filled throughout the European Union.

TECHNICAL DATA:

• Valve: W 24.32 x 1/14 "
• Content: 95% nitrogen and 5% hydrogen
• Capacity: 8l
• Working pressure: 150 bar
• The amount of gas: ~ 1.8 m3
• Height: 82 cm
• Diameter: 14 cm
• Weight: ~ 15 kg

Powder coated according to the currently applicable PN-EN standards

It can be used throughout the European Union without additional testing

Standard in PL, DE, AT, BE, CH, IL, HU, KR, CZ, SK

SHERMAN NITROGEN REDUCER TURBO

TURBO series single-stage cylinder regulators are regulators without lever with variable outlet pressure regulation.

These regulators allow to reduce the pressure of gases taken from the cylinder to the required outlet (working) pressure and ensure that this pressure is automatically kept as constant as possible, regardless of changes in inlet pressure.

Reducers have the same design, but depending on the type of gas for which they are intended, they have different dimensions of internal and connection elements.

Combustible gas coupling nuts have left-hand threads and are marked with a hexagon notch. The maximum inlet and outlet pressure of the regulator are marked on the manometers with a red line.

• Nominal inlet pressure [bar]: 200
• Outlet pressure range [bar]: 0.5 - 10
• Rated capacity [m3 / h] : 30
• Inlet thread: W24.32x1 / 14
• Nut thread at outlet: G 1/4
• Outlet connection (ø) [mm] : 6,3
