SHERMAN SYNERGIC INVERTER WELDING MACHINE - DIGIMIG 210XS
| Brand: SHERMAN | Welding methods: MIG, MMA, TIG LIFT | Power supply: 230V | Welding current: 200A | Efficiency: 35% |

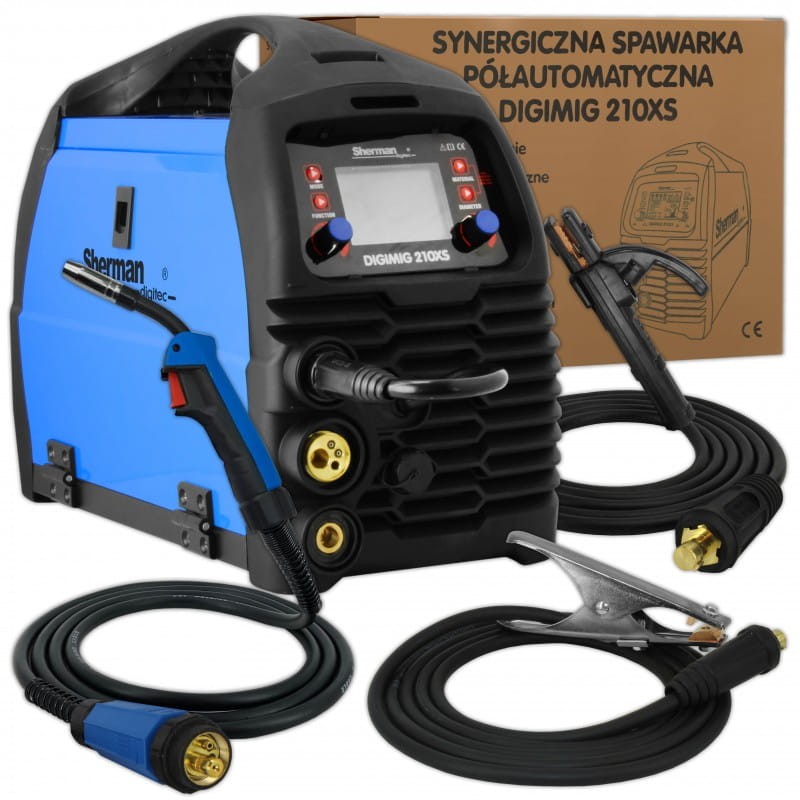

STANDARD EQUIPMENT
- Sherman Digimig 210XS welding machine
- Welding holder TW-15 / 3m
- Electrode cable
- Mass cable
SYNERGIC WELDING MACHINE DIGIMIG 210XS
The device is made in IGBT technology, which allows for a significant reduction in the weight and dimensions of the welding machine and an increase in efficiency while reducing energy consumption. It is used for manual welding of steel and non-ferrous metals. Allows welding by methods
- MIG-MAG with gas shielded welding wire,
- FLUX welding wire without shielding gas,
- MMA with a direct current (DC) electrode
- TIG LIFT with direct current (DC), with contact arc ignition.
The MIG / MAG method can be used in manual and synergic mode, simplifying its operation and allowing the welding machine to be used by people with less experience and hobbyists.
The device allows you to connect a Spool Gun (SG) with a mini wire feeder and a D100 spool of steel or colored wire.
The welder is used in closed or roofed rooms, not exposed to direct weather conditions.
Examples of applications: light industry, renovation works in the field, workshop works, automotive, silencer welding.
TECHNICAL DATA:
- Supply voltage [V]: AC 230 50Hz
- Welding methods: MIG, MMA, Lift TIG, braze welding
- Manufacturing technology: IGBT
- Welding current [A]: MIG: 200 MMA: 200 TIG: 200
- Duty cycle [%]: 35 (MIG / 40 (MMA) / 35 (TIG)
- M ax. current consumption [A]: 32
- Max. power consumption [kVA]: 7.1
- Welding current control: Smooth
- Wed spool with wire [mm]: 100, 200
- Speed wire feed [m / min]: 2 - 20
- Weight [kg]: 13
- Dimensions (L x W x H) [mm]: 530 x 230 x 390
IGBT TECHNOLOGY
Modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with a high breakdown voltage and the switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment.
LEVEL OF SECURITY
The IP defines the degree to which the device is resistant to the ingress of solid and water contaminants. IP21 means that the device is adapted to work in closed rooms.
PROTECTION AGAINST OVERHEATING
The IGBT module is protected against overheating by a protective system that switches off the machine's welding circuit. After a few minutes, the welding machine cools down to a temperature that allows it to be turned on again automatically.
WORK CYCLE
The duty cycle is based on a 10-minute period. A 35% duty cycle means that a 6.5-minute break is required after 3.5 minutes of operation. Duty cycle of 100% means that the device can work continuously without interruption.
MMA
A covered electrode method consisting of a metal core covered with a sheath. The device allows welding with all types of electrodes.
ARC FORCE
Increasing or decreasing the length of the welding arc depending on the distance between the electrode and the material to be welded. It allows you to adjust the dynamics of the welding arc. Shortening the arc length is accompanied by an increase in the welding current, which stabilizes the arc.
HOT START
The purpose of this function is to prevent the electrode from sticking to the material and is a great help when striking the arc. It works when the arc is struck, causing the welding current to temporarily increase above the value set by the welder.
VRD
The VRD function lowers the voltage in no-load condition. The correct voltage is not restored until just before the arc is struck. This minimizes the risk of electric shock, but in some cases may make the arc difficult to ignite.
REVERSING POLARITY - WELDING WITHOUT GAS
Thanks to the variable polarity, it is possible to weld with the FLUX method with flux-cored wire without shielding gas. The wire is filled with a flux that produces protective gases during welding.
SYNERGY
Welding with the MIG / MAG method using synergic settings. The device selects welding parameters depending on the selected type and thickness of the material.
These parameters can be changed by the user in order to adjust the settings to their own needs. Many programs have been prepared for synergic welding.
2 ROLL WIRE FEED
A professional feeder made of die-cast aluminum, has a powerful motor that allows for stable wire feeding without jamming. It is equipped with 2 drive rollers.
2T / 4T
- 2T - Pressing the gun trigger button will cause gas to pre-flow, then strike the arc and start welding. When the button is released, the arc will be extinguished and gas will flow out.
- 4T - Pressing and releasing the welding gun button will pre-flow gas, then strike the arc and start welding. When the button is pressed and released again, the arc will be extinguished and the gas will flow out.
REGULATION OF INDUCTION
It enables optimization of the arc characteristics depending on the thickness of the welded element as well as the welding method and conditions. This function is useful during MIG / MAG welding of thin elements, preventing them from burning out and brazing galvanized elements.
EASY TO USE, CLEAR CONTROL PANEL
The easy-to-use control panel enables precise and smooth adjustment of parameters. The digital display shows the actual current during welding. The semi-automatic welding machine has a menu that facilitates operation and allows you to choose the type of material to be welded.
GAS PRE-FLOW TIME
The time from pressing the button in the handle of the handle and opening the gas valve until the arc is struck. Typically it should be longer than 0.5 seconds to supply shielding gas to the exit of the torch nozzle to shield the welding start.
GAS FLOW TIME
The time from the extinction of the arc to the closure of the gas valve to shield the solidifying weld pool. Too short a post-flow time may result in oxidation of the weld.
MEMORY OF SETTINGS
The device has a memory of the last settings, i.e. after switching off and on again, the last set parameters are restored. In order for the settings to be saved, none of the parameters should be changed for at least one minute.
WELDING OF ALUMINUM ALLOYS
Welding aluminum is not a simple activity, it requires experience, knowledge and certain practices from the welder, which will facilitate the execution of welds on aluminum elements.
Depending on the needs, appropriate voltage and inductance corrections should be made to obtain the desired effect.
PUNCH WELDING
Pressing the gun button will cause gas to pre-flow and ignite the arc. After the time has elapsed, the arc will be extinguished and the gas will flow out.
Early release of the torch button will immediately extinguish the arc and gas post-flow. Time welding function, used for tacking workpieces, thanks to which it is possible to obtain equal length of welds.
EUROCONNECTOR
Standard connection for welding torches, which enables the connection of various types of torches (e.g. prepared for aluminum welding by replacing the Teflon insert and contact tip).
Braze welding
The device enables braze welding, mainly used in the automotive industry to join galvanized sheets together.
WELDING WITH A SPOOL GUN
The SPOOL GUN welding gun with an integrated wire feeder is used for MIG / MAG welding. It is mainly used in car workshops and for welding thin sheets.
The spool of welding wire D100 is placed in the handle of the handle. The handle has a standard EURO type connector and a control plug. The Spoolgun Mount is an additional option that can be purchased at our other auctions.
COOLING
The device has a fan cooling system, which significantly increases its efficiency.
