SPOTTER 4500 Weldman

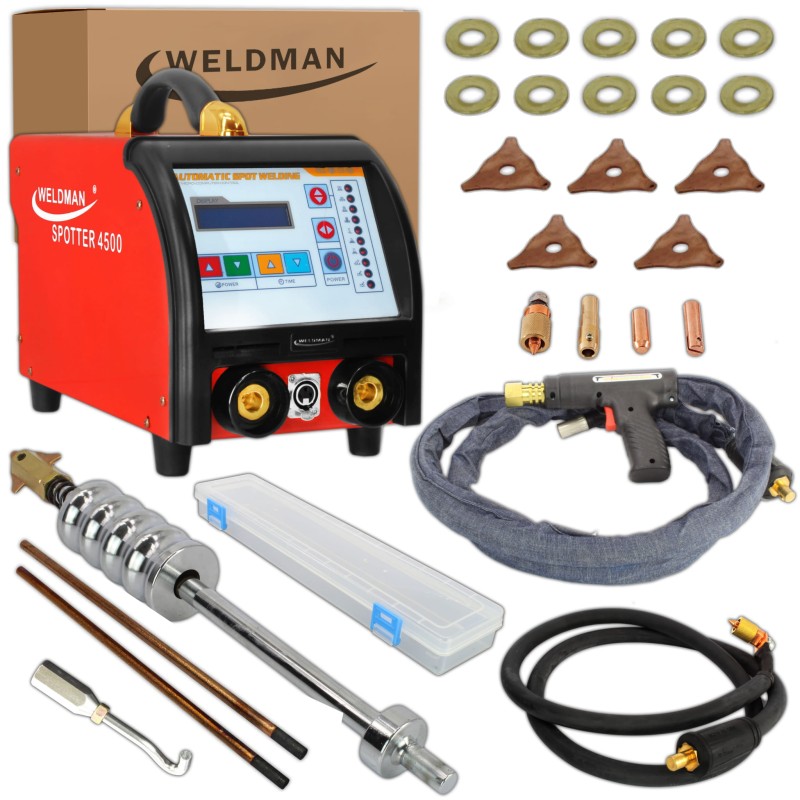

STANDARD EQUIPMENT

• Weldman Spotter 4500
• Work cable with plug (DX50) and work grip (gun) 2.2 m
• Ground cable with a plug (DX50) and a 2 m ground terminal
• Power cord without plug 2.2 m
• Gun punch with a handle for triangular washers
• 12 mm round washers: 10 pcs.
• Triangular washers: 5 pcs.
• Electrode for round washers
• Electrode for squeezing unevenness
• Carbon electrode holder
• Carbon electrodes L = 300 mm 2 pcs.
• A hook for a kinetic hammer for removing round washers
• The end of the mass
• Toolbox for consumables

WELDMAN SPOTTER 4500

A microprocessor-controlled welding machine designed for sheet metal processing:

• In the form of one-sided welding,
• Extraction (by welding elements of various shapes),
• Cutting and heating with a carbon electrode.

ADVANCED CONTROL PANEL:

• 10 different operating modes,
• Monochrome display,
• Adjustment of the current and time values as well as selection of the thickness of the welded material.
• Selection of the thickness of the welded material.

The welding machine is an extremely efficient, trouble-free and easy-to-use tool.

The spotter is widely used, especially in car body repair shops. Certainly, it will be perfect in the hands of experienced specialists.

TECHNICAL DATA:

• Code: 106 135
• Device type: SPOTTER 4500
• Supply voltage [V] : 400
• Power of the supply current [kVa]: 10.9
• Supply current [A]: 20-60
• Welding current [A]: 200-3500
• Welding voltage [V]: 2.5-12
• Sealing time adjustment [s]: 0.1-9.9
• Max. thickness of welded material [mm]: 0.6-1.0
• Protection class [IP]: 21
• The dimensions of the welding machine [cm]: 37x20x27
• Weight of the welding machine [kg]: 20

LEVEL OF SECURITY

The IP defines the degree to which the device is resistant to the ingress of solid and water contaminants. IP21 means that the device is adapted to work in closed rooms.

HEATING THE ENDS

Operation mode 02-03-04 and then set the material thickness, welding time and current. Then put the gun in the selected place and press the trigger to weld the tip.

Using a punch with a hook, we repair the surface. After the repair, rotate the drift with the hook by approx. 90 ° to tear off the washer.

ONE-SIDED SHEET WELDING

Operating mode 05 and then set the thickness of the material to be welded, time and welding current.

Mode of operation 07 for crushing unevenness created after pulling the sheet metal into the gun, place the electrode for crushing unevenness, material thickness and welding current with a wrench, and start welding as above.

Mode of operation 08 Overlapping sheet metal welding In the gun, place the carbon electrode holder and the carbon electrode using an assembly key, set the material thickness and welding current.

WELDING OF THE CORRUGATED WIRE

Operation mode 06 and then set the material thickness, time and current. Place the gun in the well of the corrugated wire and press the electrode to the wire at an angle of 90 °. By pressing the trigger of the gun, we weld the wire to the surface. Using a comb handle or a punch with a hook, repair the surface.

CRUSPING-WARMING-LOWERING

Operating mode 09 and we only set the material thickness and welding current. We move the electrode in a circular motion, heating the surface. After finishing, we cool the surface with wet material or compressed air.

WORKING WITH A MECHANICAL SUCTION CUP

Sheet metal extraction can be used with the use of a punch with a mechanical suction cup. To do this, screw the suction cup into the punch. Then we put the suction cup on the sheet and mechanically pull the sheet away. After completing the work, unscrew the suction cup from the striker.

VERSATILITY OF APPLICATION

The welding machine can handle one-sided welding and pulling and cutting of various elements of car bodies

EFFICIENCY

Modern technology and display ensure fast and precise parameter setting.

WORK COMFORT

The intuitive display that allows you to select the operating mode, as well as the welding time and current adjustment switches allow you to choose parameters according to your needs.

SECURITY

The device is protected by an overheating protection system that shuts down the device circuit when a problem is detected. After a few minutes, the device cools down to a temperature that allows it to be switched on again automatically.
